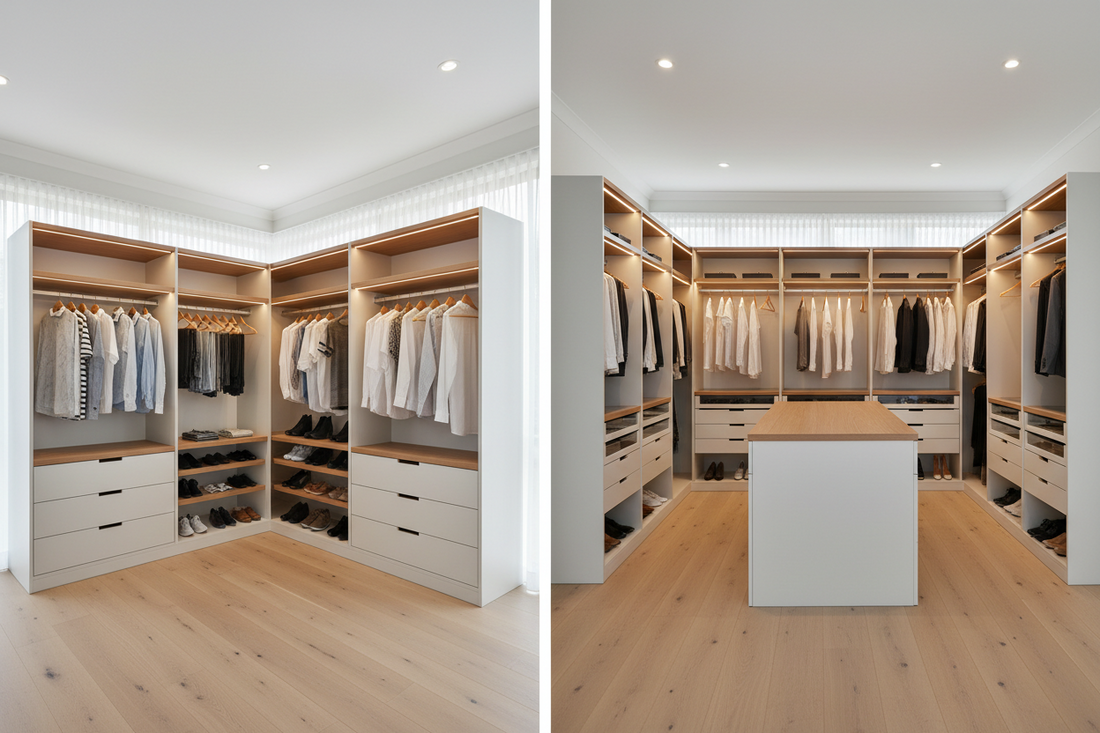

L-Shape vs U-Shape Wardrobes: Which Layout Suits Your Space?

Walk-in wardrobes are one of the most requested features in Sydney bedroom design, and for good reason. A well-designed walk-in gives you everything a conventional built-in does, plus the ability to see and access your full wardrobe without opening and closing a series of doors. The layout you choose shapes everything else about how the wardrobe functions.

Two layouts dominate walk-in wardrobe design: the L-shape, which uses two adjacent walls, and the U-shape, which uses three. Both can produce exceptional results. The right choice depends on the dimensions of your space, your storage priorities, and how you use a wardrobe day to day. Impressive Wardrobes has been designing custom built-in wardrobes across Sydney for over 30 years. Here is how we help clients choose between the two layouts.



Design Your Walk-In Wardrobe with Impressive Wardrobes Free measure and quote across Sydney. 30+ years experience. 10-year guarantee. Book Your Free Design Visit



Understanding the L-Shape Layout

An L-shape wardrobe uses two adjacent walls, typically meeting at a corner, to create a continuous run of storage that wraps around the corner of the space. The junction between the two walls creates the characteristic L shape when viewed from above.

Space requirements

An L-shape layout is viable in a dedicated walk-in space that is roughly 2 to 2.5 metres wide on each wall, though the exact minimum depends on the depth of the cabinetry (typically 550 to 600mm) and the clearance you need to move around comfortably. The actual usable floor area at the centre of an L-shape is generous, which is one of its appealing qualities.

Storage characteristics

An L-shape wardrobe typically offers:

•        Good linear hanging space on each wall arm

•        The corner junction can be used for shelving, drawers, or a dedicated shoe storage section

•        The open floor space in front of both arms allows good visual access to the whole wardrobe from one standing position

•        Flexibility to differentiate each arm, for example one side for hanging and one for shelves and drawers

When L-shape works best

The L-shape is the preferred layout when:

•        The walk-in space is roughly square or has a stronger corner configuration than depth on three sides

•        The room opening leads naturally into a corner rather than the middle of a wall

•        One or both users want a dedicated dressing area in the centre of the L rather than a closed-in feel

•        The room dimensions make a third wall of cabinetry impractical

Understanding the U-Shape Layout

A U-shape wardrobe uses three walls, with cabinetry running along the back wall and both side walls in a continuous arrangement. The entrance to the walk-in typically sits at the open end of the U, between the two side walls.

Space requirements

A U-shape walk-in requires enough depth from the entrance wall to the back wall to provide comfortable access to the back cabinetry with both side walls also fitted. A minimum of around 1.8 to 2 metres of internal width (between the two side wall cabinet faces) is needed for comfortable movement. The overall room needs to be wider to accommodate this: typically a minimum of 3 metres or more depending on the cabinetry depth.

Storage characteristics

A U-shape wardrobe typically offers:

•        Significantly more storage capacity than an L-shape for an equivalent floor area

•        The ability to dedicate specific walls to specific categories: hanging on one side, shelves and drawers on the other, and mixed use on the back wall

•        The back wall, typically the widest and most prominent section, is well suited to hanging rails, tall shelving for folded items, or a combination

•        The layout creates a strong sense of being inside the wardrobe, which many users find satisfying for a dressing room experience

When U-shape works best

The U-shape is the preferred layout when:

•        The walk-in space has adequate depth and width on all three walls to make the back wall genuinely useful

•        Maximum storage capacity is the primary design priority

•        The wardrobe will be shared between two users and dedicated zones for each person are desired

•        The entrance to the walk-in allows enough clearance on the side walls to access the back without feeling confined

L-Shape vs U-Shape: Side-by-Side Comparison



Factor	L-Shape	U-Shape
Walls used	Two adjacent walls	Three walls
Minimum room size	Approx. 2m per arm, roughly square	Approx. 3m+ wide, adequate depth to back wall
Storage capacity	Good	Greater for equivalent floor area
Centre floor space	Generous: open dressing area	Less floor space between the two side arms
Corner utilisation	Corner must be treated thoughtfully	No corner junction to manage
Best for	Corner rooms, more spacious feel	Maximum storage, shared wardrobes, larger spaces
Visual feel	Open and airy	More enclosed, dedicated dressing room feel

These are general guides. Every room is different, and a professional measure and design visit will identify which layout genuinely works for your specific space.



Corner Treatment in L-Shape Wardrobes

The corner in an L-shape wardrobe is the element that most commonly either wastes space or uses it cleverly. The junction of two 550mm-deep cabinet runs in a corner creates a zone that is not accessible from either direction without a thoughtful solution.

Common approaches include:

•        A deep corner shelf unit with an angled or curved front face that reaches around the corner

•        A dedicated shoe storage tower positioned at the corner junction where depth and accessibility are less critical

•        A pull-out corner shelf mechanism that extends forward for access

•        A simple open shelf section in the corner as a display or accessory zone

The Impressive Wardrobes design team handles corner configuration as part of the standard design process. The free measure and quote visit is the point at which these decisions are made with your specific space and preferences in mind. Browse the inspiration gallery to see examples of how corners have been handled in completed installations.



💡  Measure your clearance, not your room: The key measurement for both L and U-shape wardrobes is not the total room size but the usable clearance in the dressing area. Allow a minimum of 800mm to 1000mm of clearance in front of each cabinet section for comfortable movement and door opening. In the Impressive Wardrobes design visit, this clearance is mapped precisely to ensure your layout is genuinely functional.



What About Awkward Spaces?

Not every walk-in wardrobe opportunity presents as a perfectly rectangular room. Sloped ceilings, alcoves, irregular walls, and rooms with architectural features are all situations where a standard L or U-shape layout needs adaptation. Impressive Wardrobes' awkward storage solutions address these challenges as standard, creating custom designs that make the most of unusual spaces rather than working around them.

If your potential walk-in space has an irregular shape or unusual features, mention these specifically when contacting the team. Bring photographs or a rough sketch to the design visit. Our experience with difficult spaces across Sydney means we have almost certainly dealt with your specific challenge before.



Start Your Walk-In Wardrobe Design Impressive Wardrobes designs L-shape, U-shape, and custom walk-in wardrobes across Sydney. Book your free design visit today. Enquire Now



Frequently Asked Questions

Can I have a walk-in wardrobe in a small bedroom?

Yes, though the room dimensions need to support it. A dedicated walk-in wardrobe space of approximately 2 to 2.5 metres by 2 metres is the practical minimum for an L-shape layout. Smaller spaces can sometimes be configured as a walk-in with careful design, but below a certain size, a standard built-in wardrobe with carefully planned internals will deliver more usable storage per square metre. The free design visit will give you an honest answer for your specific room.

Which layout stores more clothing?

A U-shape layout provides more linear storage capacity than an L-shape in an equivalent floor area, because it uses three walls rather than two. For a household with a large wardrobe or where two people share the space, the U-shape is generally the higher-capacity choice. For individuals or households with a moderate wardrobe, the L-shape delivers ample storage with a more open, airy feel.

What if my walk-in space is long and narrow rather than square?

A long, narrow walk-in space typically favours a single-run layout, with cabinetry along both long walls and an open aisle between them. This is sometimes called a galley or parallel layout. The width of the aisle and the depth of the cabinetry are the key design decisions. Impressive Wardrobes can design for narrow spaces as part of the broader built-in wardrobe range. Bring your room dimensions to the design visit and the team will map out the options.
